Frozen refrigeration compressor 15hp for chiller

  • 1 - 9 Sets
    $850.00
  • 10 - 29 Sets
    $750.00
  • >=30 Sets
    $700.00
Model Number:
4VB15.2G
Samples:
$750.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 50 51 - 100 101 - 300 >300
Est. Time(days) 15 30 45 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Power Voltage Customization (Min. Order: 10 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
Place of Origin:
Jiangsu, China
Brand Name:
JC Penguin
Type:
Refrigeration Compressor
Application:
Refrigeration Parts, Medium and High temperature
Certification:
CE,CCC
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Product name:
Frozen refrigeration compressor 15hp for chiller
Motor Nominal Power HP/kW:
15HP/11kW
Displacement(1450rpm50Hzm)m*3/h:
70.8m*3/h
Maximum operating current:
28Amperes
Start / stall current:
50/110Amperes
Fuel supply mode:
Pressure lubrication
Oil injection quantity L:
4.50L
Evaporator Temp:
13℃/7℃
Voltage:
380V-440V/3Ph/50HZ-60HZ
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Package,Inner plastic film; Outer plywood box.Or according to the orders.
Port
Shanghai/Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 50 51 - 100 101 - 300 >300
Est. Time(days) 15 30 45 To be negotiated
Video Description

Frozen refrigeration compressor 15hp for chiller





Product Description

We are the manufacturer you are looking for,Our factory is also looking for agents and distributors all over the world to cooperate and develop together.

This piston compressor model 4VB15.2G has the same performance as the Bitzer model 4PCS-15.2 or 4PES-15(Y) for medium& low temperature applications.



Product Description:SEMI-HERMETIC RECIPROCATING COMPRESSORS
Product Range:10HP-50HP
Refrigeration Type:R22(R12/R502),R134a,R404A,R407C
Evaporating Temperature Range:R22:-30~+12.5℃,  R134a:-30~+12.5℃, R404A:-35~+7.5℃,R407C:-25~12.5℃
Primary Application:

Our products have same application like Bitzer compressors and other brands refrigeration compressor which can applied cold stroage and chiller unit, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food

Tech. Data:
ModelMotor Nominal PowerDisplacement Max operating current AFuel Supply modeWeight
HP/kWm3/hAKg
4VB10.2Z10HP/7.5KW48.521Centrifugal lubrication92
4VB12.2Z12HP/8.8KW56.2524Centrifugal lubrication110
4VB15.2Z15HP/10.5KW73.631.0Pressure lubrication135
4VB20.2Z20HP/15KW84.537.0Pressure lubrication135
6WB30.2Z30HP/22KW126.853.0Pressure lubrication140
6WB40.2Z40HP/30KW151.678.0Pressure lubrication162
4VB15.2G15HP/10.5KW48.524Centrifugal lubrication98
4VB20.2G20HP/15KW56.331.0Centrifugal lubrication110
4VB25.2G25HP/18.5KW73.637.0Pressure lubrication100
4VB30.2G30HP/22KW84.553.0Pressure lubrication140
6WB40.2G40HP/30KW126.878.0Pressure lubrication150
6WB50.2G50HP/37KW151.692.0Pressure lubrication180

"Z " means medium& low temperature applications(-35℃~-15℃),

"G" means high temperature application(-15℃~+12.5℃)



-------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Jiangsu Taixing Jingchuang Penguin Refrigeration Equipment Manufactory (JC PENGUIN) was established in 1992, we are an enterprise specializing in the development and production of refrigerating compressors and related condensing units. The main products range from semi-hermetic Piston refrigerating compressors to scroll and screw refrigerating compressors and related condensing units that have extensively been applied into freezing & cold storage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food.

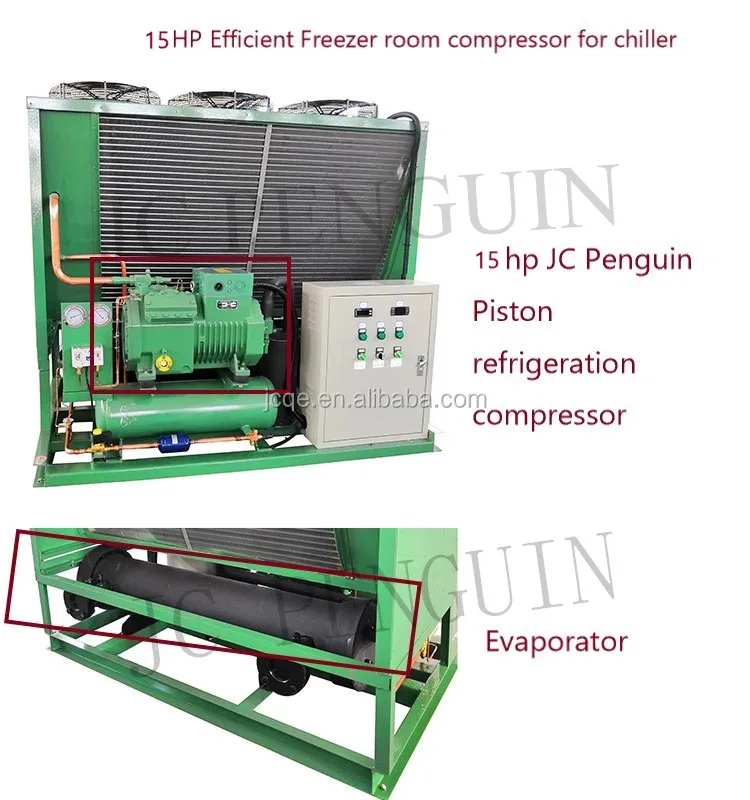

15HP Air cooled Condensing Unit
